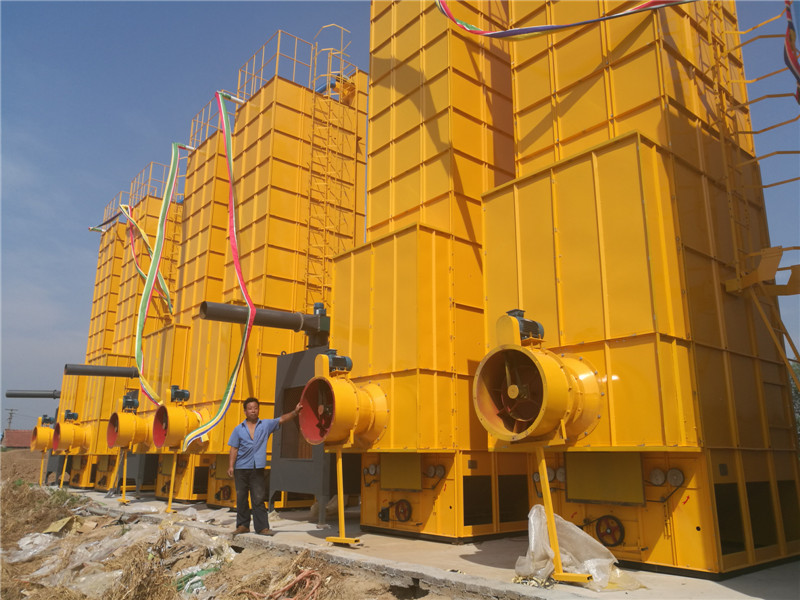

Mix flow fast drying speed beans dryer machine 20 tons v port bin type dryer tower beans
Parameters
| Model |
PGD-15 |
| Loading capacity |
15 Tons |
| Dimension |
2538*4321*10000mm |
| Drying Type |
Low Temperature circulating Type |
| Motor Quantity |
7 sets |
| Power Supply |
380V 50Hz |
| Total Power Consumption |
9.95 kw |
| Drying Rate |
0.6~1.2% |
| Heat Consumption |
<20,000 Kcal |
| Weight |
3,500KG |
| Standard Device |
Online moisture meter, Conveyor system, discharge system, drying system, buffer system, elevator, Blower, temperature sensor, auto control system. |
Main Features
1. Up-and-down design without screw conveyor, lowered grain crack rate, trouble-free and saving power.
2. Large drying area, thin multi-channel drying layer, makes drying efficiency and uniform.
3. Automatic drying monitoring system, temperature and moisture dynamic display, fault reminder, simple operation, make the operation management more convenient.
4. Equipped with imported grain moisture tester, real-time accurate detection of the current moisture value of grain.
5. Heating by multifunctional hot air furnace, uses rice husk, straw, wood and other fuels, makes low operating costs;
6. Strongly remove impurity, dryer with strongly removal function efficiently dry and remove impurity;
7. The inner heat exhaust air duct is automatically cleaned by air flow, grain dust is discharged with the grain, not stored in air duct.
8. According to the level of moisture and the customer's drying needs, set multistage drying temperature automatically, to achieve uniform, energy saving, fast drying.
9. The most durable axis and blades with reinforcement in industry, combines with the control by frequency conversion type allocating axis.
Product Details
Our Services
Pre-sale services:
1. provide professional technical support;
2. send the product catalog and instruction manual;
3. personal call or visit is warmly welcome
sale of services:
1. we promise honesty and enthusiasm, it’s our pleasure to serve you as you purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract
3. We send engineers to install in your factory and train your works until they totally get all skills
After-sale service:
1. One year warranty and life long maintenance
2. 24 hours telephone service online
3. A large stock of components and parts, easily-worn parts.
